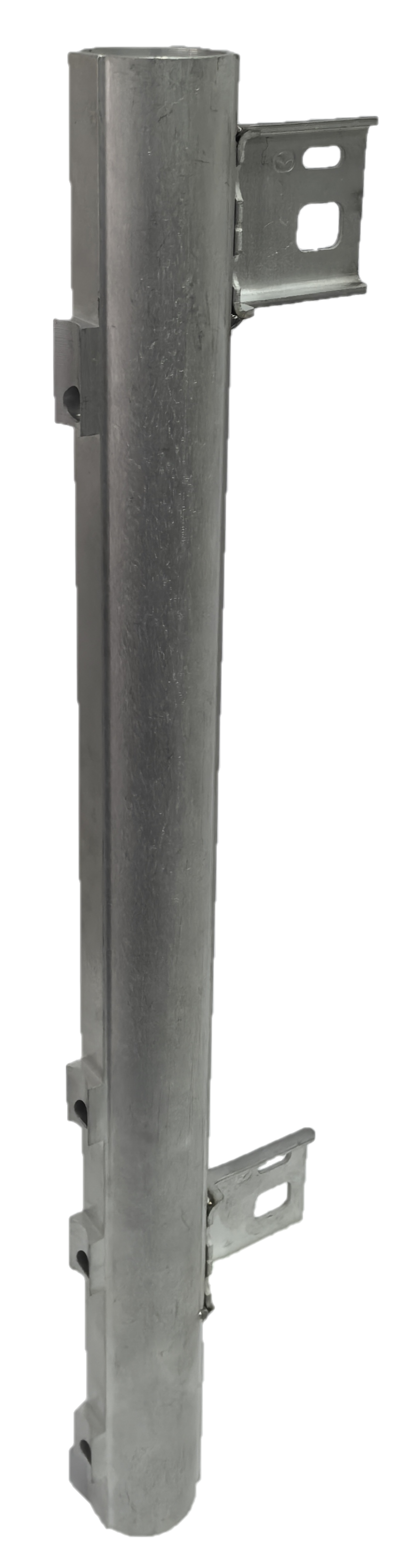

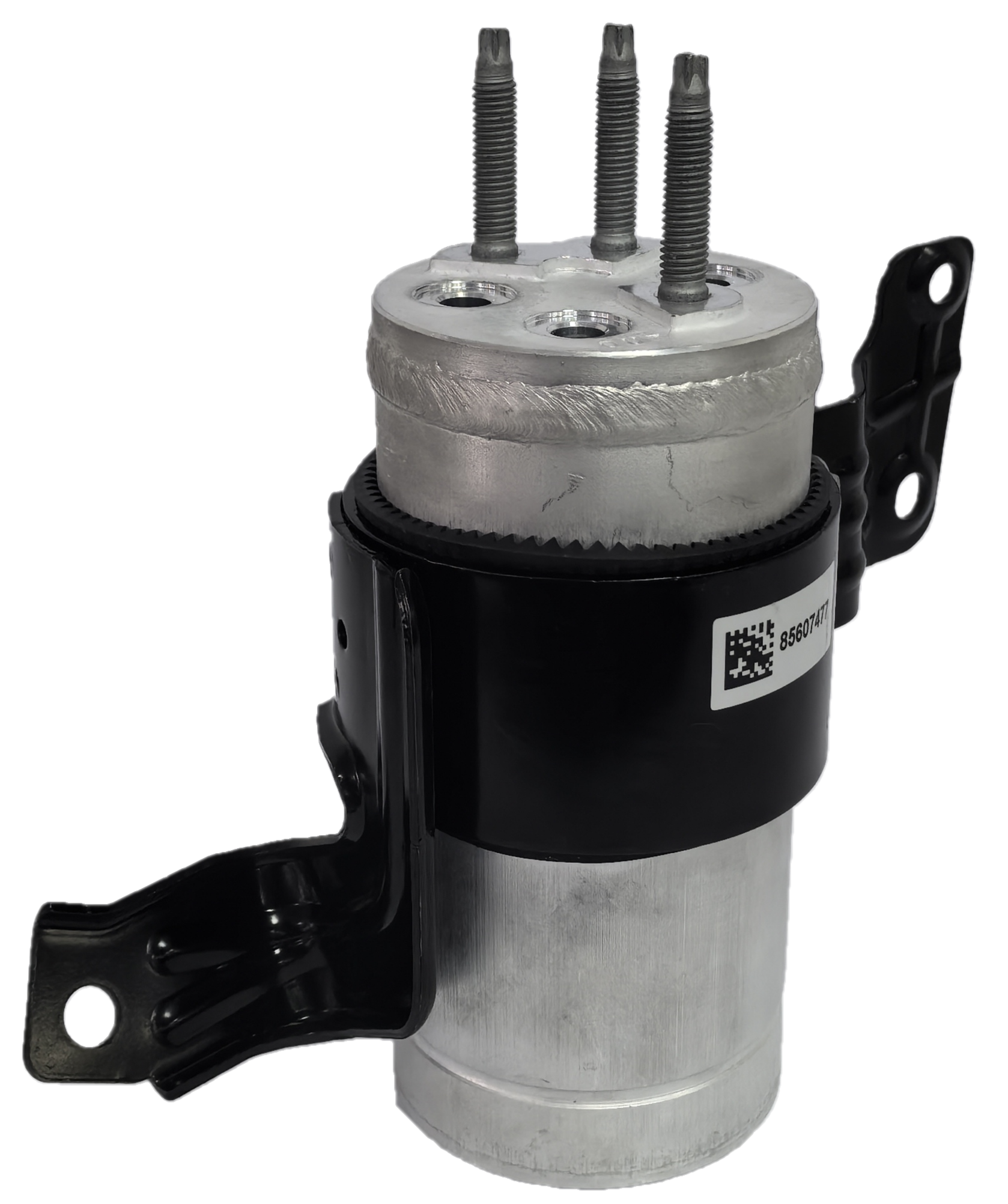

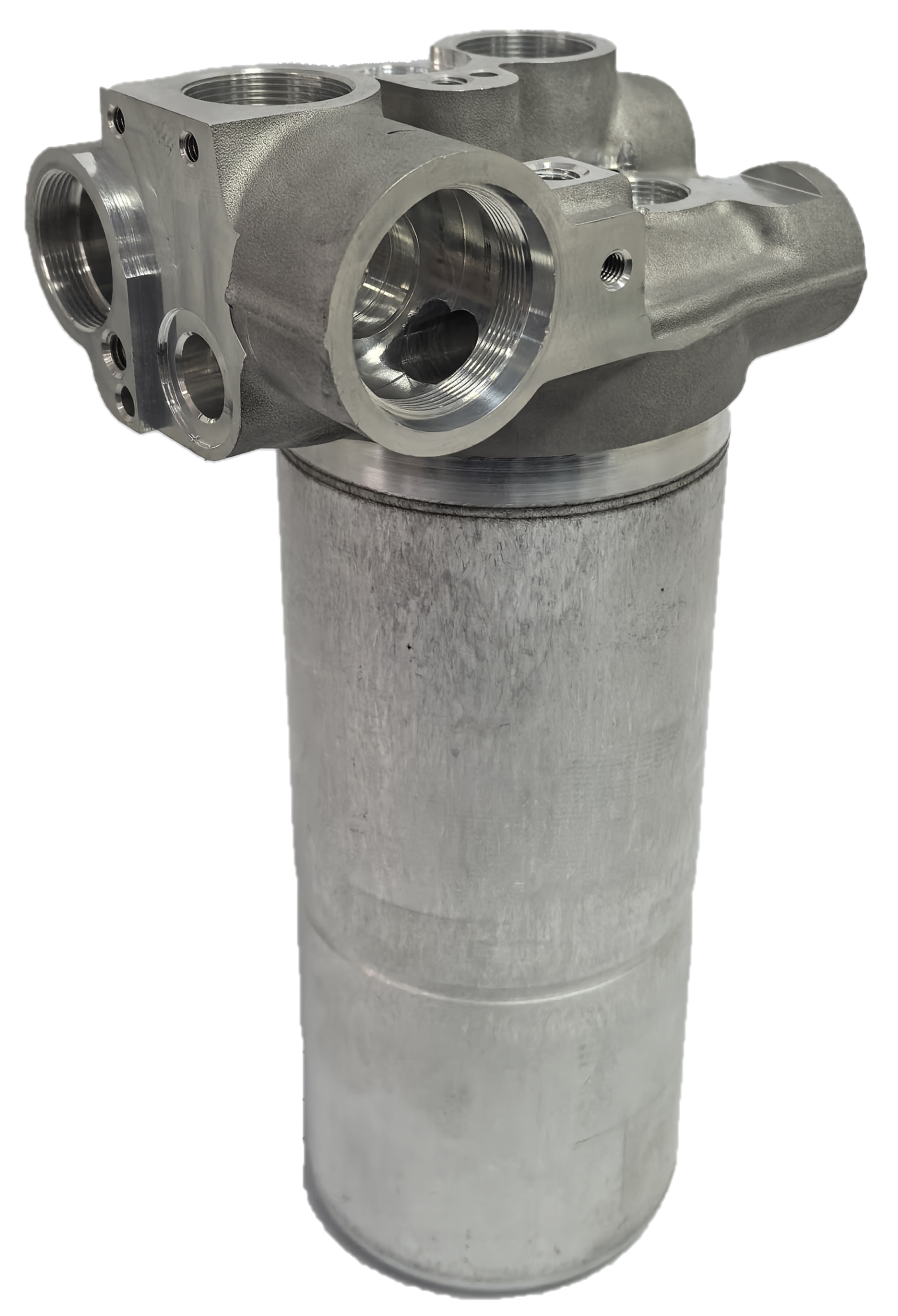

Receiver Drier

Design Features

• Customized designs with various packaging sizes
• Dedicated designs for refrigerant storage, liquid-gas separation, moisture absorption and particle filtration
• Light weight extruded bottle body and high accuracy machining process with competitive cost effectiveness
• Available for both air cooled condensers and water cooled condensers
Technical Parameter

Medium R134a / R1234yf
Ambient temperature -40 ℃ to 120 ℃
Filter performance 60 μm to 120 μm
Resistant to burst pressure ≥ 10.5 MPa
Resistance to pressure cycling 150000 cycles
Water absorbing capacity ≥ 16% wt
Effective volume 120 mL to 1000 mL
External leakage ≤2.0 g/y
